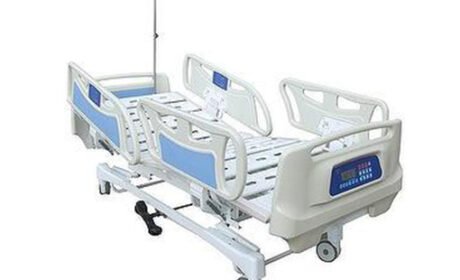

SKD-C Electric bed five functions
Double auto-regression function for bed platform
Super-low bed position 350mm
PP bed platform, Removable & washable
Inserted-type PP head foot board, one step quick
release with
patent safe lock
PP safety guardrail with two steps unlocking system,
patent
design
Technical Parameters:
External Size (LxWxH): 2130x1050x(360-780)mm
Mattress Platform: 1925x880mm
Safe Working Load: 250kg
Back-rest Adjustment: 0-75°(±10°)
Knee-rest Adjustment: 0-35°(±10°)
Reverse Trendelenburg: 0-16°
Trendelenburg: 0-16°
Angle Indicator for back rest and trendelenburg
Technical Configuration:
Linear Motor: 4 pcs
5″ Double Side Castors, Central Locking System: 4 pcs
ABS Oasis Side Rail Extra Height, with nurse control
panel: 1
set
ABS Oasis Bed Ends with Safe Lock: 1 set
PP Bed Platform, Removable & Washable: 9 pcs
Plastic Socket Inside PP Guardrail for Phone or
Glasses: 2 pcs
Patent Angle Indicator For Back-rest And

Trendelenburg
Position: 4 pcs
70mm Wall Bumper Wheel: 4 pcs
IV Pole: 1set
IV Pole Prevision: 4 pcs
Drainage Hook: 2 pcs
Central Locking Pedal: 2 pcs
Manual CPR
ABS Mattress Stopper: 2 pcs
With hook type nurse control panel at foot end:1 pc
Hand controller
Back up battery
Emergency Stop Button
Cardiac Chair Position
Monkey Pole
